Sale!

3 kWh home kit at 110 V with Growatt 3000W 48V inverter charger (stackable) with 10 kW battery

SKU: S3KW_GROW-2 Categories: , , , , ,
Photovoltaic kit designed to support installations of up to 3 KW demand
with a 110 V voltage inverter, designed to charge the batteries using
photovoltaic solar energy and/or the electrical grid.
This kit supports growth in demand capacity and or to provide 220V
capacity.
Designed for people who want to make an initial investment and then
grow their system.

CUP: $2,239,101.00

1 in stock

Description

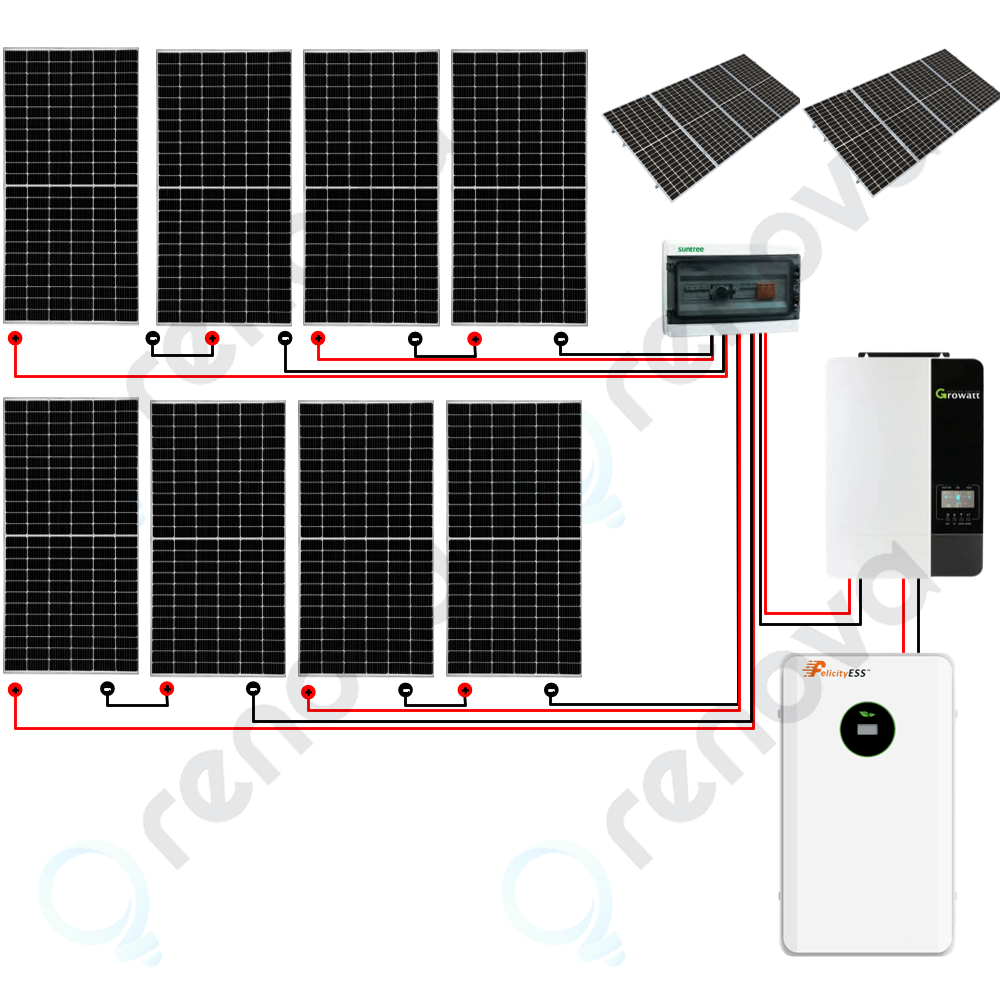

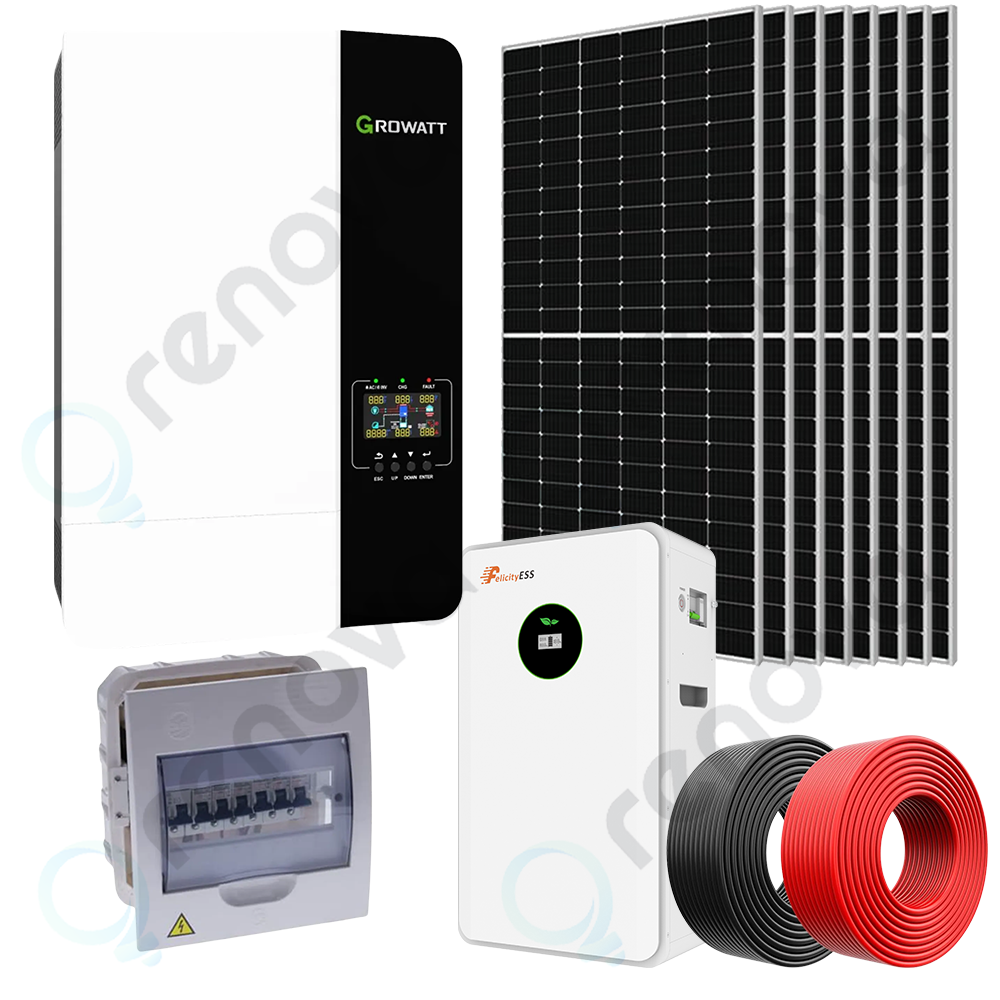

Solar Kit Components List

1. Solar Generation System

  • Photovoltaic Panels:

    • 8 × HiMAX5 550W Monocrystalline PERC Solar Panels

    • Total Capacity: 4.4 kWp (8 × 550W)

  • Mounting System:

    • 2 × MG Solar 4-Panel 20° Tilt Racks (supports 8 panels total)

2. Energy Storage System

  • Battery:

    • 1 × LUX-E-48200LG03 Lithium Battery

    • Capacity: 10 kWh

    • Voltage Range: 48V ~ 51.2V (Nominal 48V system)

3. Power Conversion

  • Inverter:

    • 1 × Growatt LVM-ES SPF 3000TL Hybrid Inverter

    • Rated Power: 3kW continuous

    • Output: 120V AC

    • Solar Input Range: 120-250V DC

    • Battery Compatibility: 48V DC

4. Wiring & Connectivity

  • PV Cables:

    • 20m (65.6 ft) 12 AWG PV Cable (2000V, black)

    • 20m (65.6 ft) 12 AWG PV Cable (2000V, red)

  • Connectors:

    • 2 × MC4 Connector Pairs

  • Additional Wiring:

    • 20m (65.6 ft) 10 AWG Black Cable

5. Protection Devices

  • DC Protection:

    • 1 × 63A 2-Pole DC Miniature Circuit Breaker (500V DC)

    • 2 × 15A Fuses with Holders

  • AC Protection:

    • 2 × 1P 32A 400V Circuit Breakers (6kA rating)

  • Safety Disconnect:

    • 1 × 3-Pole 63A Knife Switch (Double Copper Contact)

6. Enclosure

  • 1 × 8-Module Wall-Mounted Enclosure (White)

System Highlights

✔ 4.4 kW Solar Array (8 × 550W high-efficiency panels)
✔ 10 kWh Lithium Battery (48V system, single unit solution)
✔ 3kW Hybrid Inverter (Growatt with 120V output)
✔ Complete Protection System (DC/AC breakers, fuses, disconnect)
✔ Optimized Mounting (2 × 4-panel racks for flexible installation)





Technical Data Sheet Monocrystalline Solar Panel, monofacial, 550W
GROWATT LVM-ES SPF 3000TL 3kW 120V Technical Data Sheet
Lithium Battery LUX-E-48200LG03

Installation service: 81,000.00 CUP

Note: The service does not include transportation, lodging and food costs for staff in case of transfers outside the province.
If any extra material is necessary for installation, it will be agreed with the client on site.
