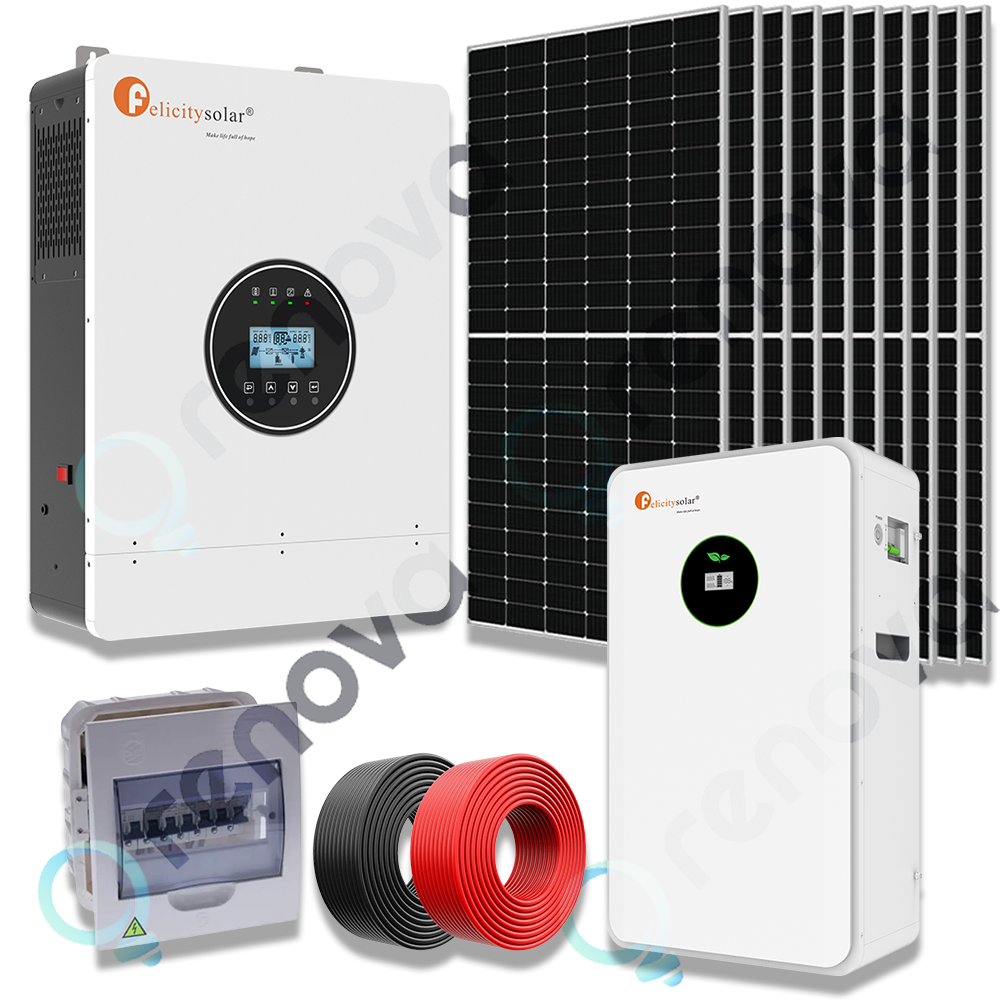

Domestic 5 kWh 110V Felicity Solar Kit with 5000W 48V Inverter and 10 kWh Battery

SKU: S5KW-F10KW Categories: , , , , ,

Solar Power Kit designed to support installations with up to 5000 W demand, featuring a 110 V inverter, designed to charge batteries using photovoltaic solar energy and/or grid power.

This kit supports expansion by connecting additional units in parallel, allowing the system to provide 110/220V service to power air conditioning units and other 220V equipment when expanded.

Designed to meet the power needs of a 110V household. It is capable of supporting refrigerators and freezers, lights, televisions, fans, and water pumps. It allows the use of electric pots, stovetops, and microwave ovens in the home.

CUP: $2,537,321.00

1 in stock

Description

EQUIPMENT UNIT QUANTITY
585W Bifacial Dual Glass Solar Panel, 2278*1134*30mm, 350mm(+), 250mm(-) cable length, MC4 compatible connector Unit 10
20-degree mounting structure for five panels, MG Unit 2
FELICITY SOLAR Single-Phase/Dual-Phase Inverter IVEM5048-LV Power: 5KW Voltage: 48V Unit 1
Felicity Solar Lithium Battery Model: FLA48200 Capacity: 10kWh Voltage: 51.2V Unit 1
Photovoltaic Cable PV 12 AWG 2000 V, black Meters 30
Photovoltaic Cable PV 12 AWG 2000 V, red Meters 30
Fuse Holder Unit 2
20A Fuse Unit 2
PV Dedicated Circuit Breaker 2P DC550V 63A – DC Breaker 63A Unit 1
Sumflex H07V2-K FB-BH 90° Celsius 450/750V 1×1.10mm BLACK 10 AWG Meters 20
MC4 Connector Pair 2
Circuit Breaker 2P 63A 6kA 400V Unit 2
Wall-mount electrical panel, white, for 12 modules Unit 1
Transfer Switch 3P, 63A Unit 1

Note: The installation service for this kit is priced at 94,500.00 pesos.

This price does not include the installation materials required to adapt the kit to the specific characteristics of the home. It also does not cover expenses related to transportation of goods and personnel, lodging, or meals for installations outside the municipality of Camagüey.

Technical datasheet for the 585W solar panel
Technical datasheet for the IVEM5048-LV inverter
Technical datasheet for the FLA48200 battery
