3kW 110V Home Kit with MPP Solar 3000W 24V Inverter and 5kWh Battery (Copy)

SKU: S3KW-MPPEW5KW Categories: , , , , , ,

Photovoltaic kit designed to support installations of up to 3000 W demand with a 110 V inverter, designed to charge the batteries using photovoltaic solar energy and/or the electrical grid.

This kit does not support expansion by connecting other devices in parallel.

Designed to cover the needs of a 110V household. It is capable of supporting refrigerators and freezers, lights, televisions, fans, and water pumps. It allows the use of electric pots and stoves in the home as long as they are used in a staggered manner.

It does not support 110V air conditioners, electric water heaters, and high-consumption hair dryers.

CUP: $2,035,393.00

1 in stock

Description

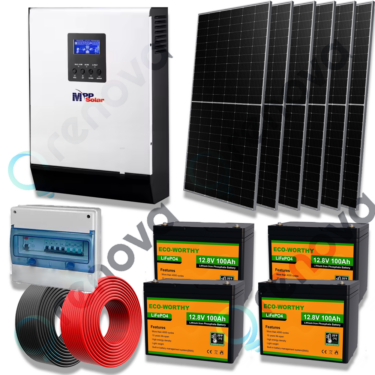

This kit includes:

EQUIPMENT UNIT QUANTITY
585W Bifacial Dual Glass Solar Panel, 2278*1134*30mm, 350mm(+), 250mm(-) cable length, MC4 compatible connector Unit 6
20-degree mounting structure for six panels, MG Solar Unit 1
MPP SOLAR 3024LV-MSD +WIFI (3KW 24V) Unit 1
Ecoworthy LiFePO4 Battery 12V 100Ah Unit 4
Photovoltaic Cable PV 12 AWG 2000 V, black Meters 20
Photovoltaic Cable PV 12 AWG 2000 V, red Meters 20
Fuse Holder Unit 2
20A Fuse Unit 2
PV Dedicated Circuit Breaker 2P DC550V 63A – DC Breaker 63A Unit 1
Sumflex H07V2-K FB-BH 90° Celsius 450/750V 1×1.6mm BLACK 10 AWG Meters 20
MC4 Connector Pair 2
ANL-150A Fuse Unit 1
Battery Disconnect Switch 275A DC12-48V Unit 1
4 AWG Copper Cable, Maximum Current 152 A Unit 3
Tinned Copper Lugs 4 x 5/16, 4 AWG Unit 14
Circuit Breaker 2P 32A 6kA 400V Unit 2
Wall-mount electrical panel, white, for 8 modules Unit 1
Knife Switch with double copper contact, 2 pole 32A Unit 1

Note: The installation service for this kit is priced at 81,000.00 pesos.

This price does not include the installation materials required to adapt the kit to the specific characteristics of the home. It also does not cover expenses related to transportation of goods and personnel, lodging, or meals for installations outside the municipality of Camagüey.

Technical datasheet for the 585W solar panel
Technical datasheet for the 3024LV-MSD inverter
Technical datasheet for the FLA48100 battery
