Fiber Optic Splice Sleeves, 60mm (50-Pack)

Outer diameter after recovery: OD 3.000 in +/- 0.004 in
Hole diameter before recovery: OD 1.118 in
Pin diameter: OD 0.059 in
Minimum installation temperature: 230.0 °F
Maximum installation time: 60 seconds
Standard color: Clear
Compliant standards: UL224, MIL-I-23053, GR-1380-CORE, ZN-96 TPSA-006
RoHS compliant
Packaging: 50 PC per bag

CUP: $1,887.00

2 in stock

Description

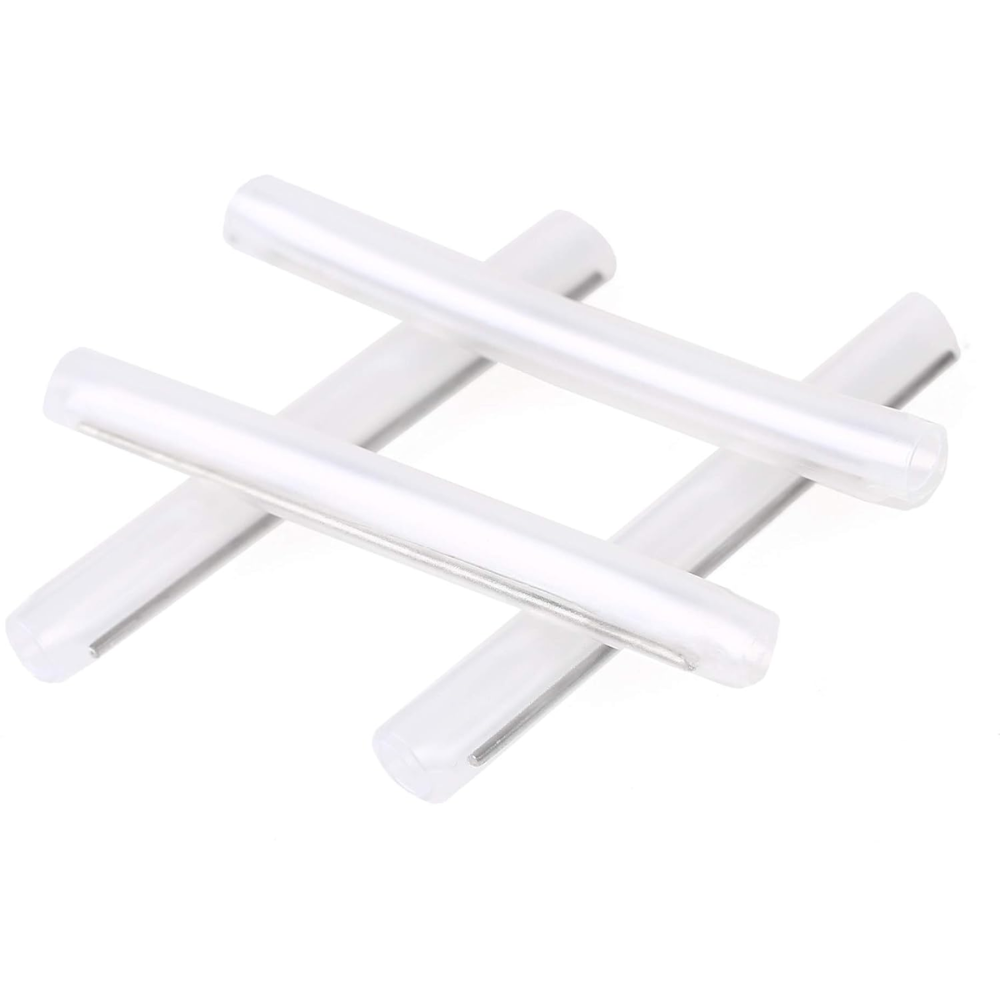

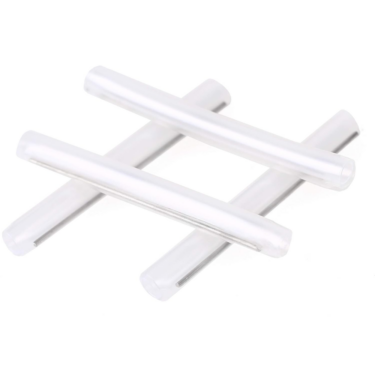

Heat Shrink Splice Protectors
Heat Shrink Fiber Optic Splice Protectors

They consist of cross-linked polyolefin, hot-melt tubing, and a stainless steel reinforcing rod that maintains the optical

transmission properties of the fiber and enhances the protection of fiber optic splices. Easy to handle during installation

without damaging the fiber, and the clear sleeve makes it easy to inspect the splice before shrinking.

The sealing structure keeps the splice free from the influence of temperature and humidity in special environments.

The shrink sleeve is applied for fiber optic closure, to secure and protect the fiber optic cable during splicing.
